ATMega2560 robotics platform with Gameboy CameraProject started on July 28, 2011.
Last updated on August 30, 2012.

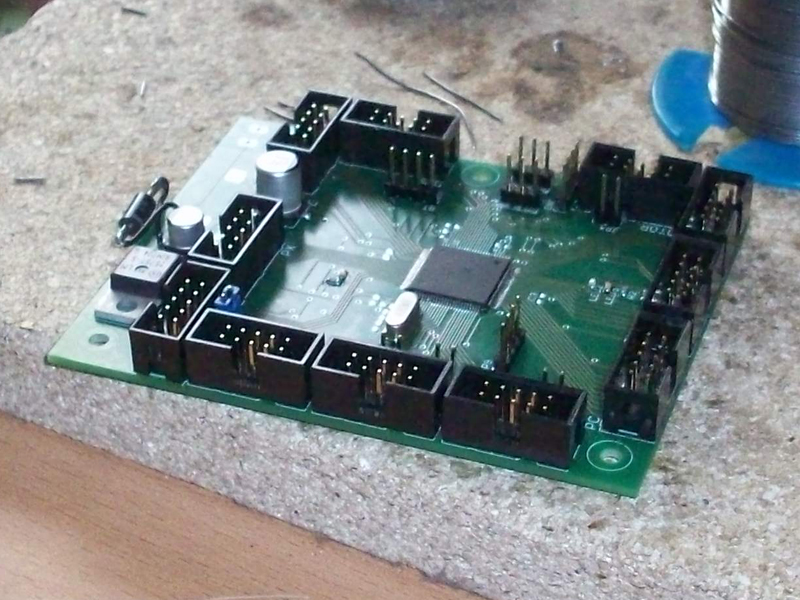

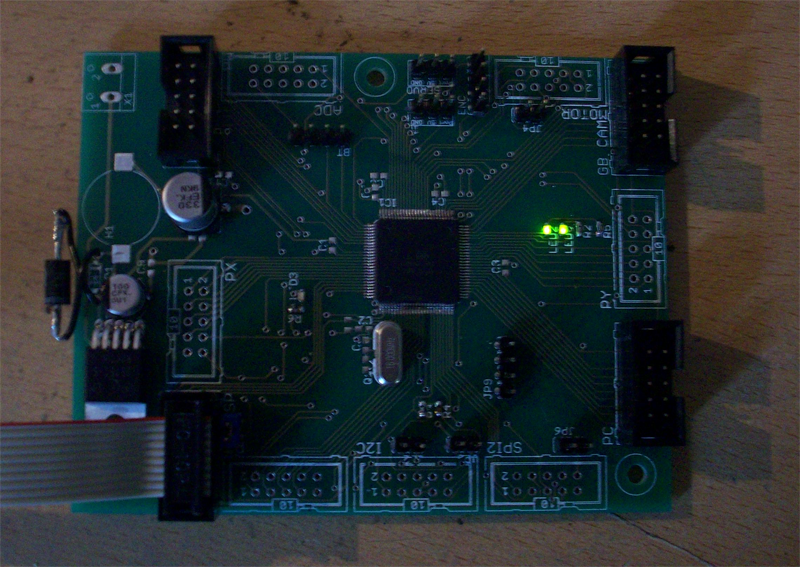

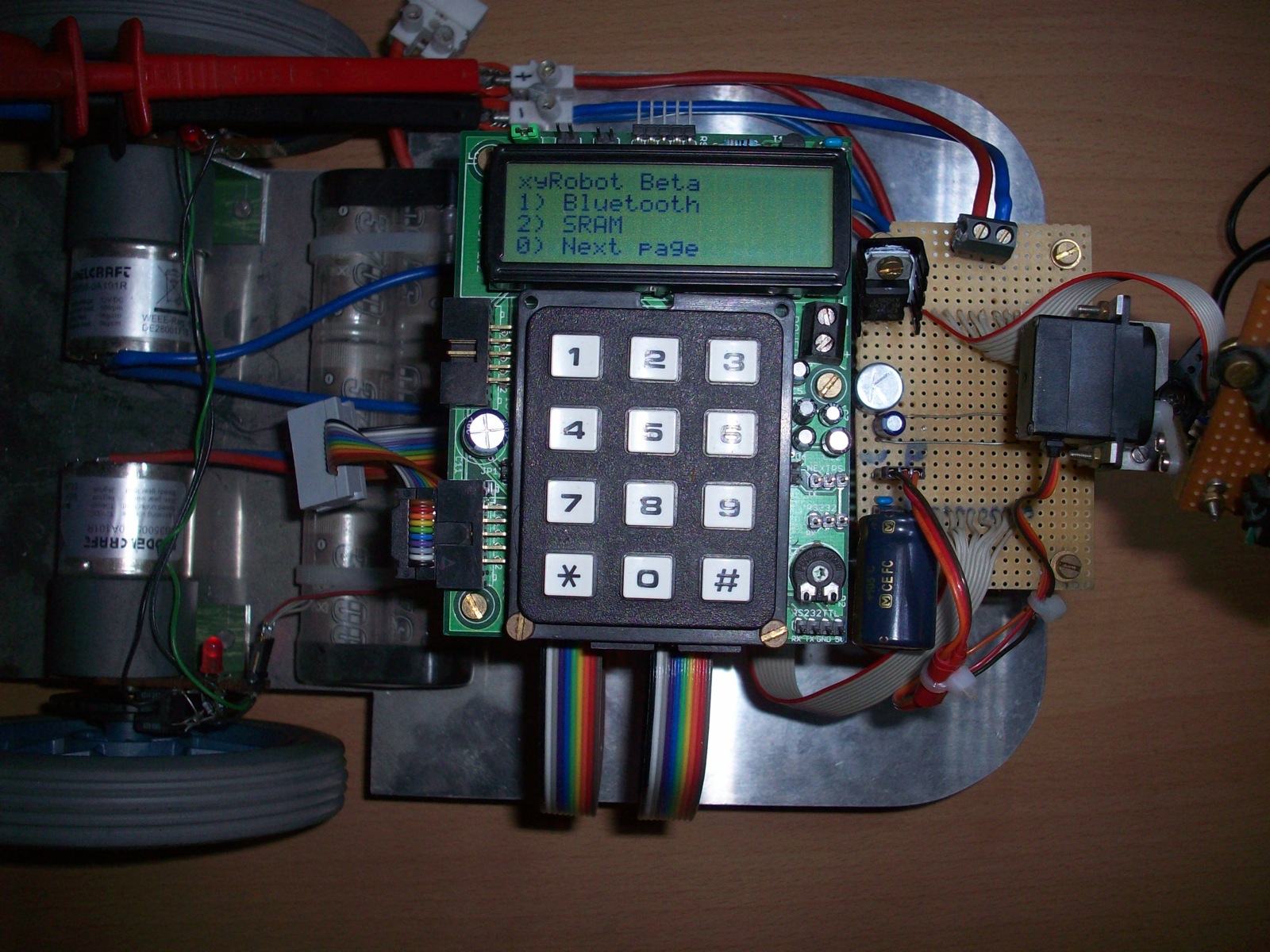

This is my robot project. A self-made PCB with an AtMega2560 controls everything. The robot has a Bluetooth module, a Gameboy Camera and my RAM module. I bought the RN-KeyLCD and the RN-VN2 from Roboternetz.
The current software as well as Eagle files of the PCB are on GitHub.
Other articles that are part of xyRobot:
- Bluetooth UART (BTM-222)
PCB for the BTM-222 and 5V level converters
- K6x4008 SRAM
Connecting an K6x4008 SRAM to an ATmega2560
Remote Control Casio FX9860-GII Calculator AddIn
Java Swing App um einen Roboter fernzusteuern

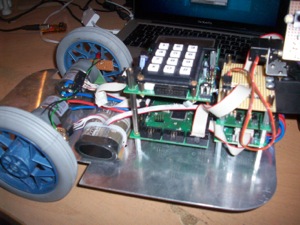

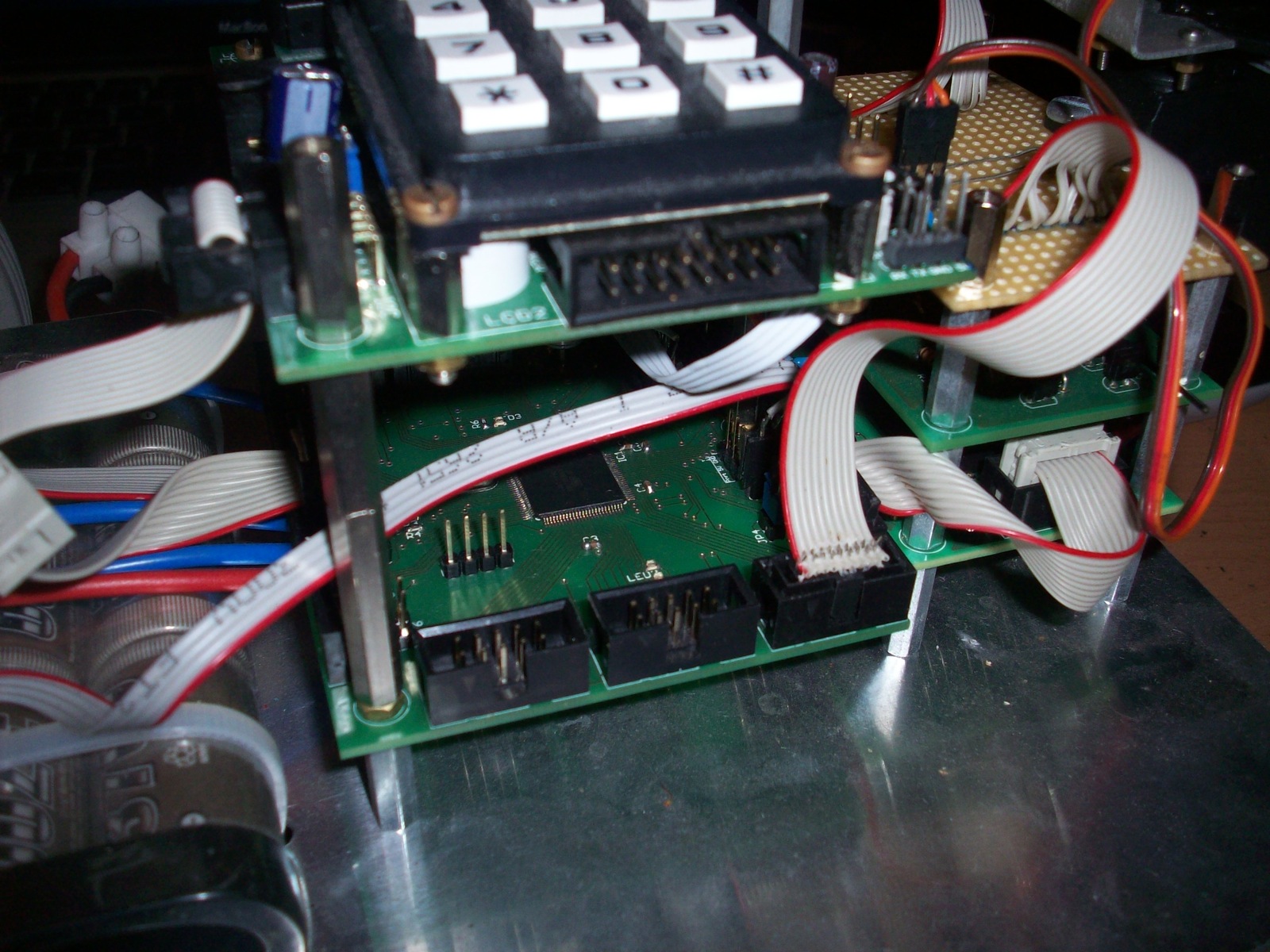

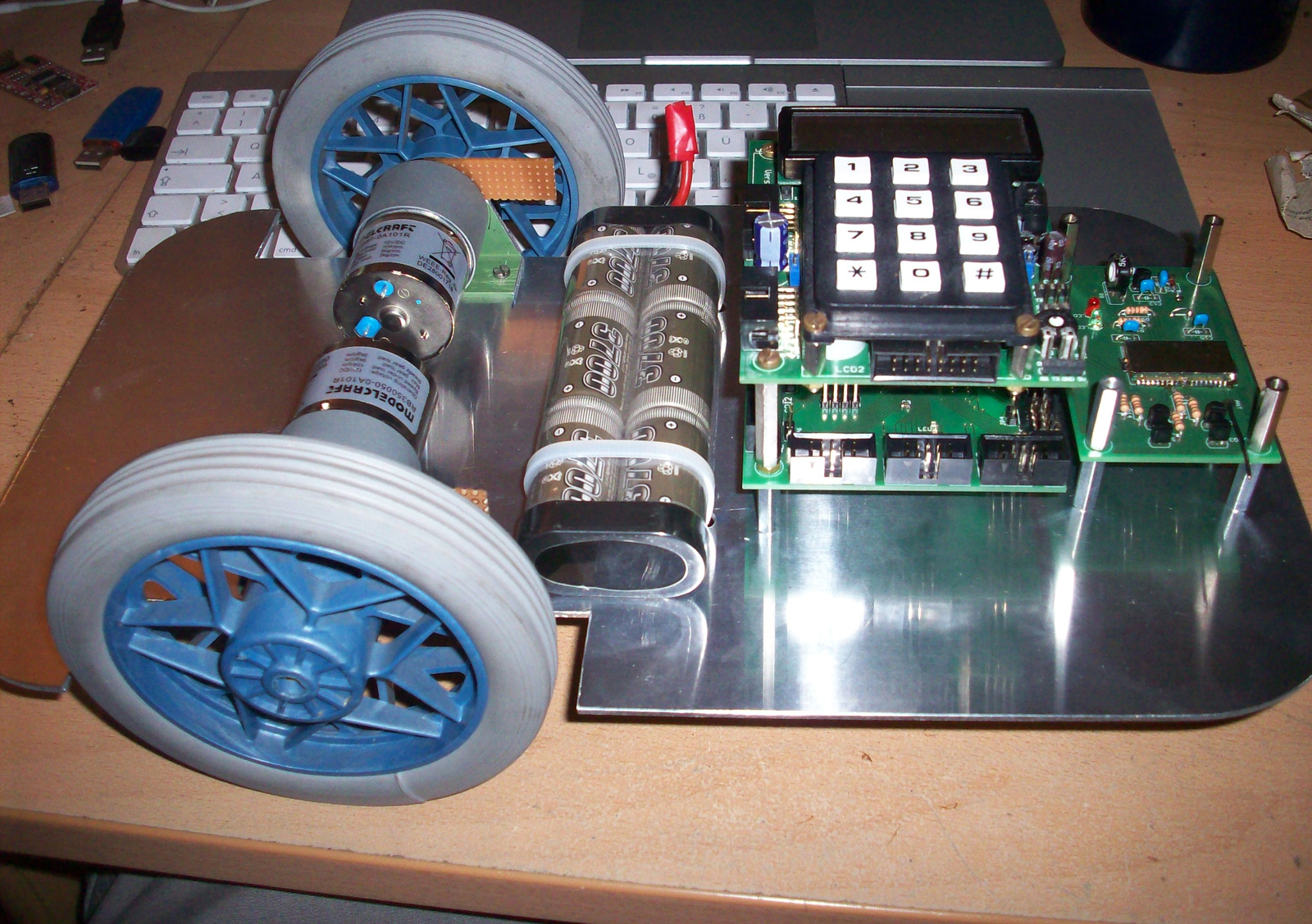

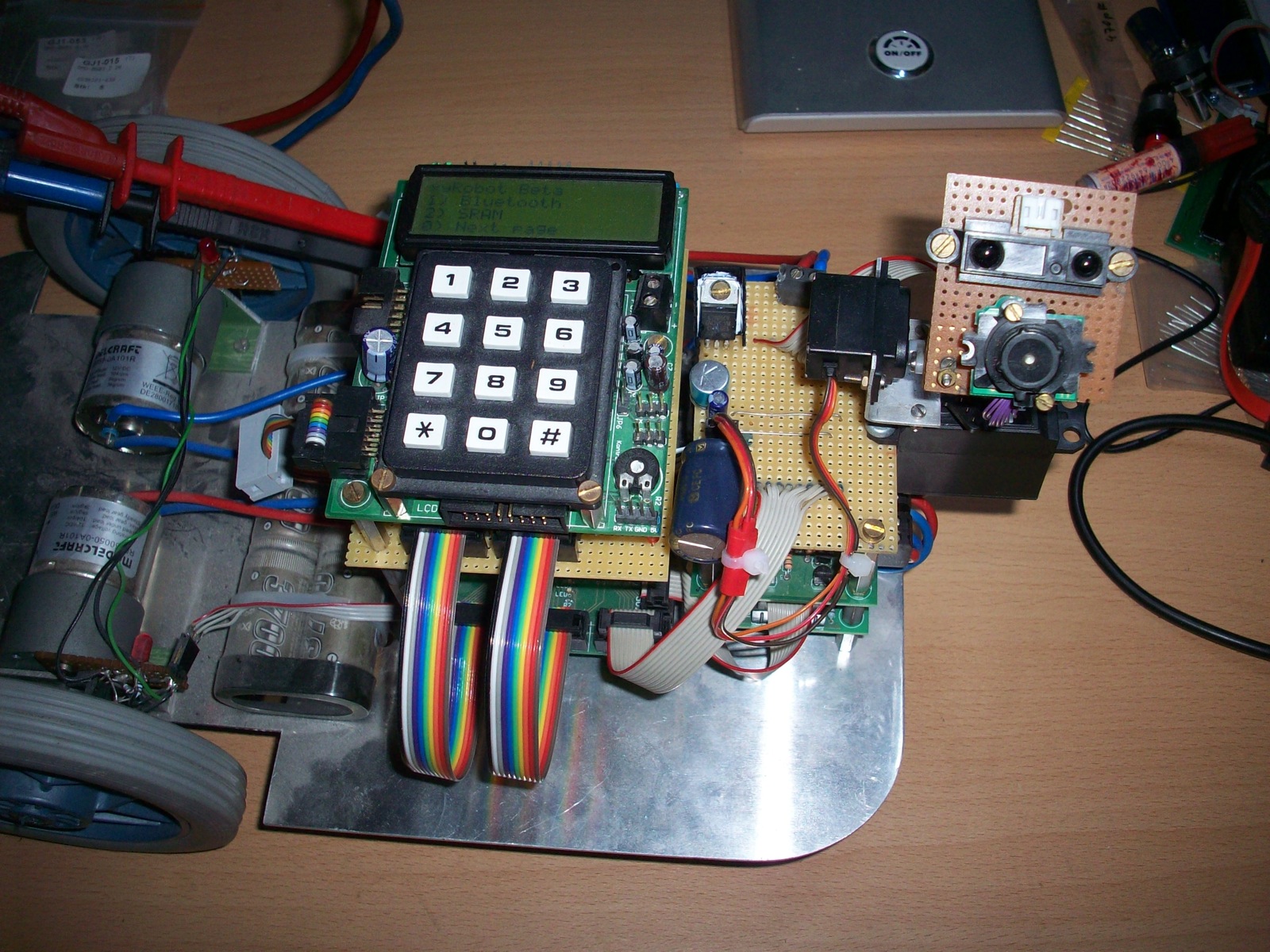

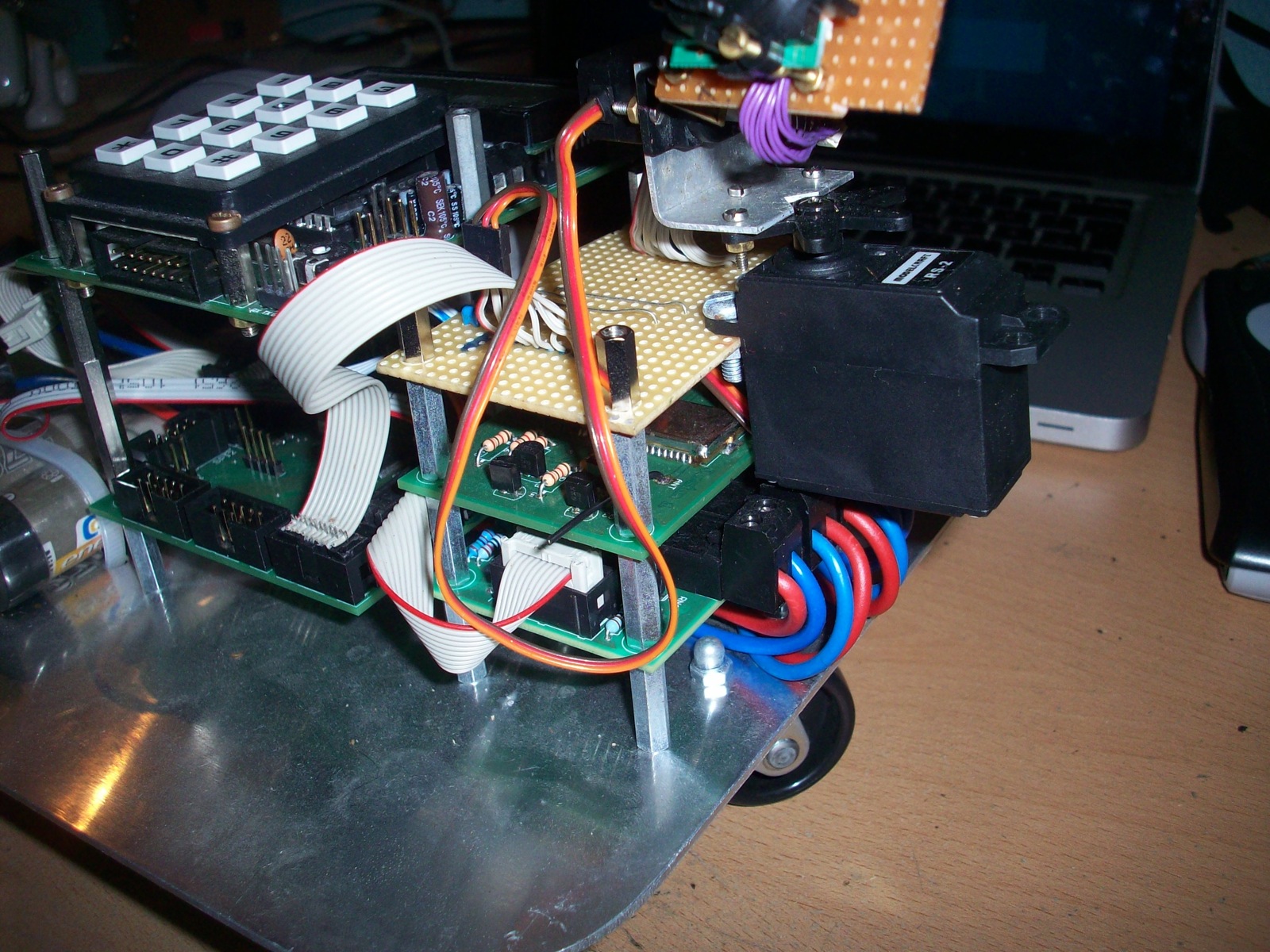

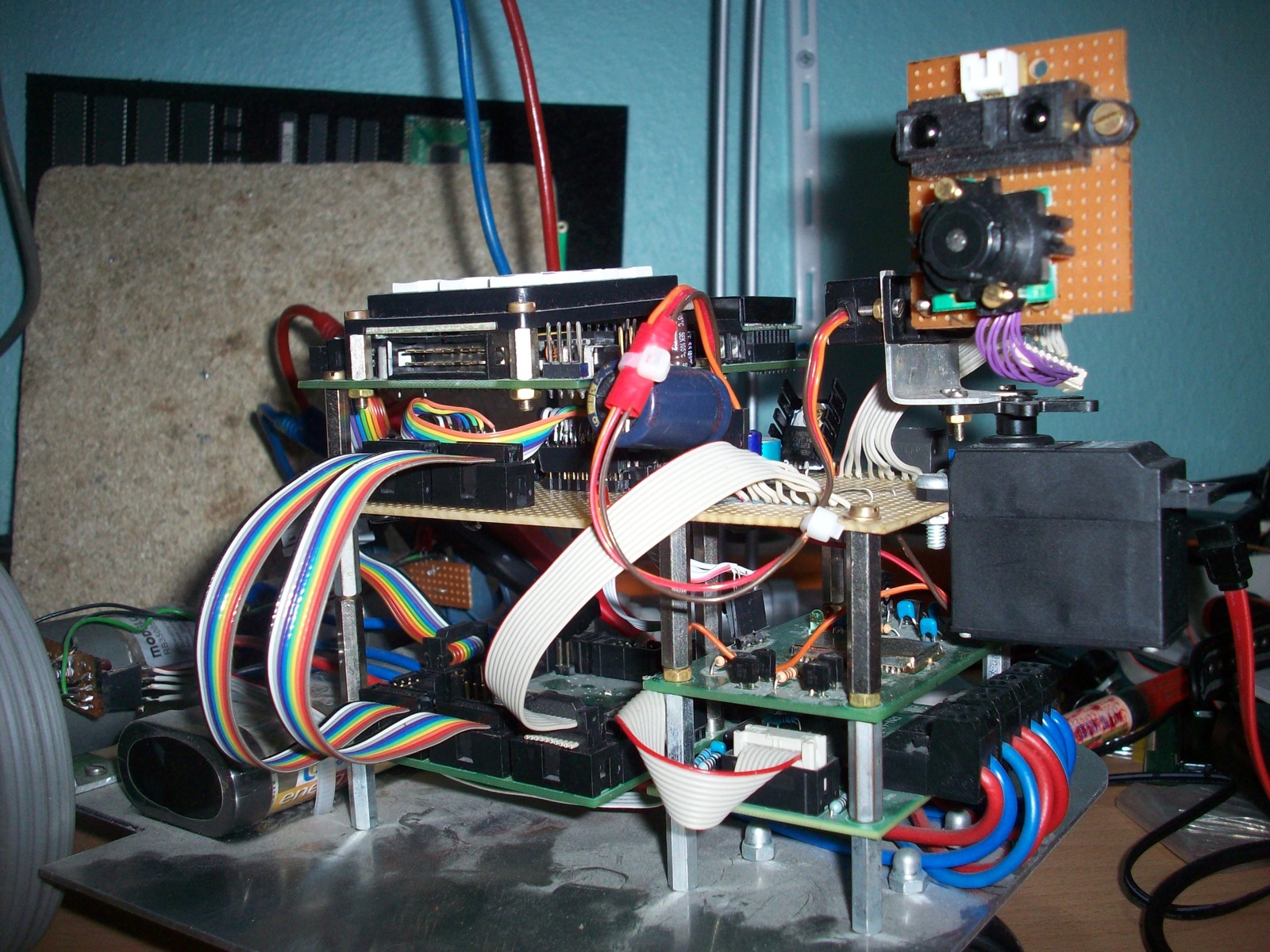

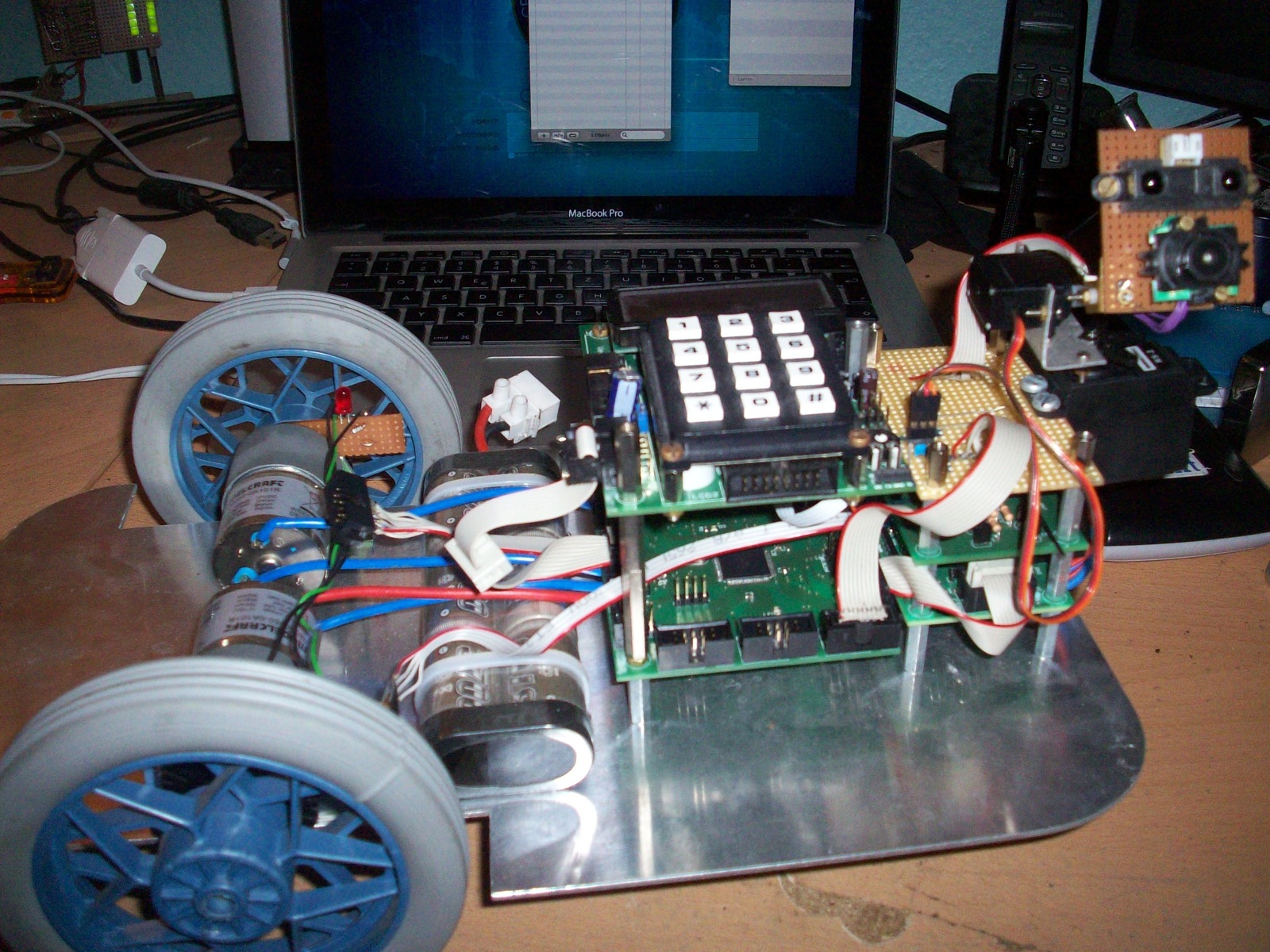

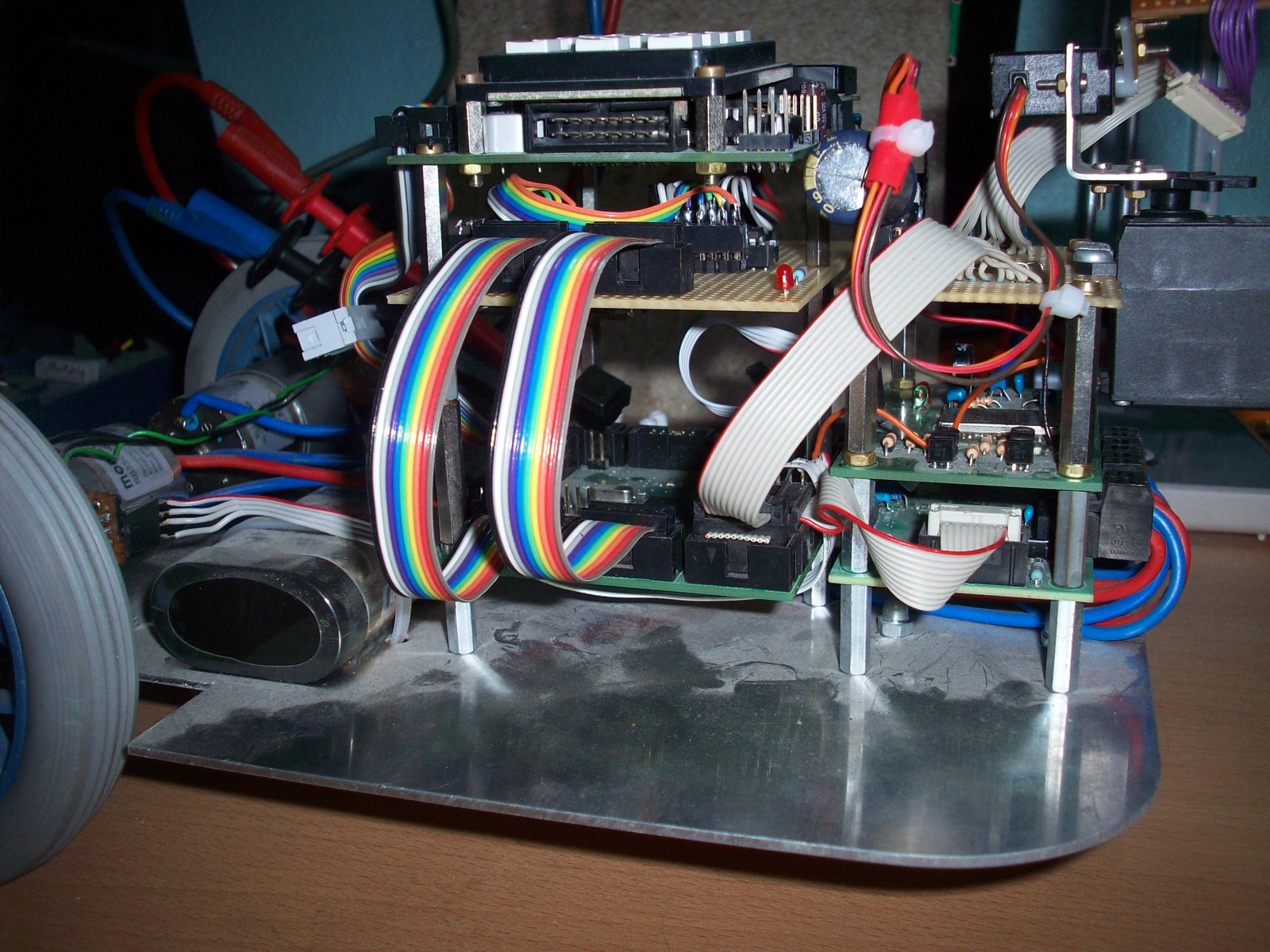

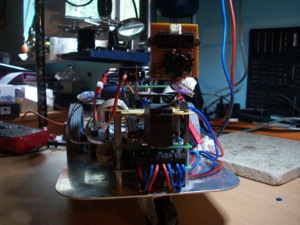

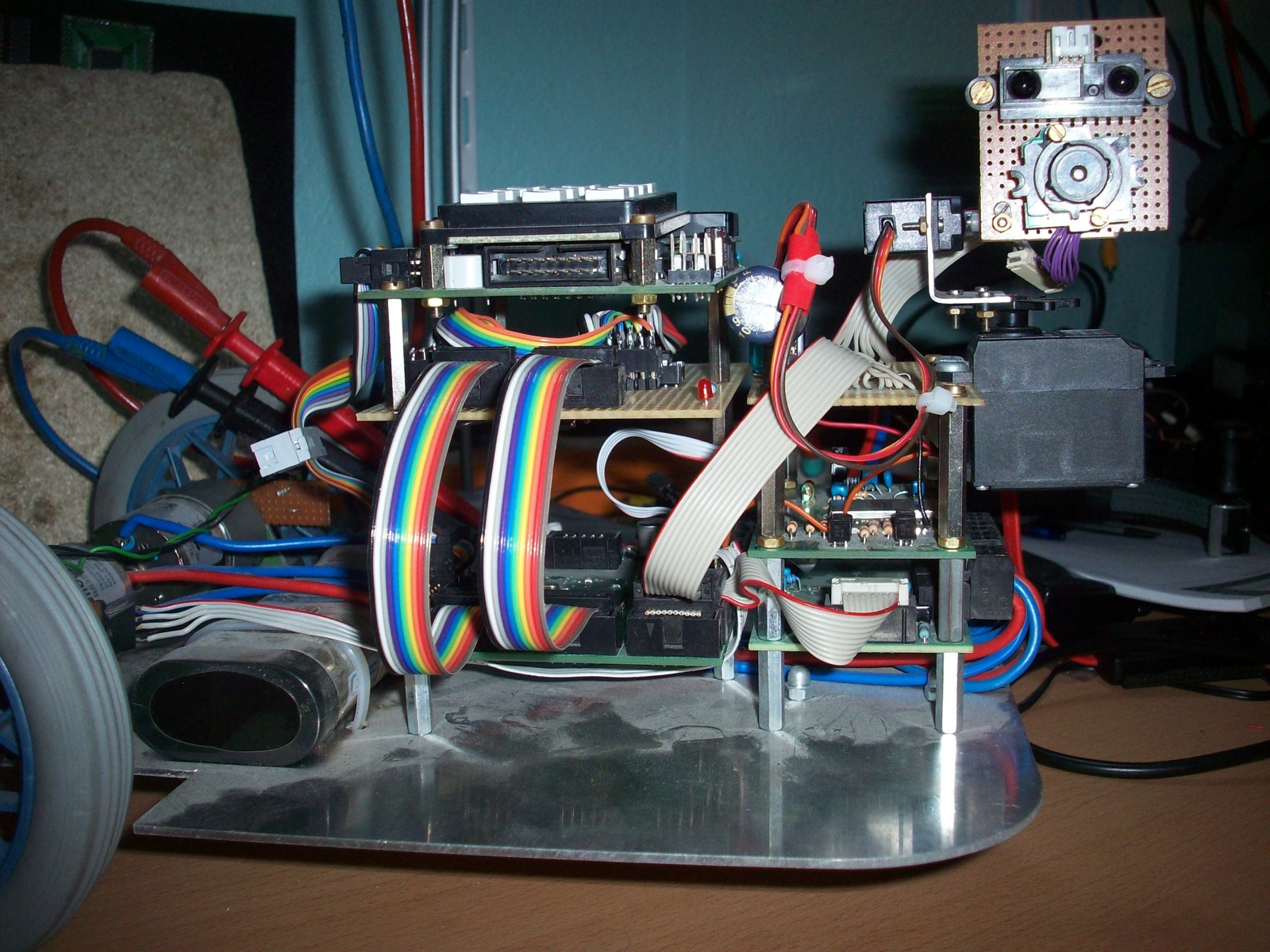

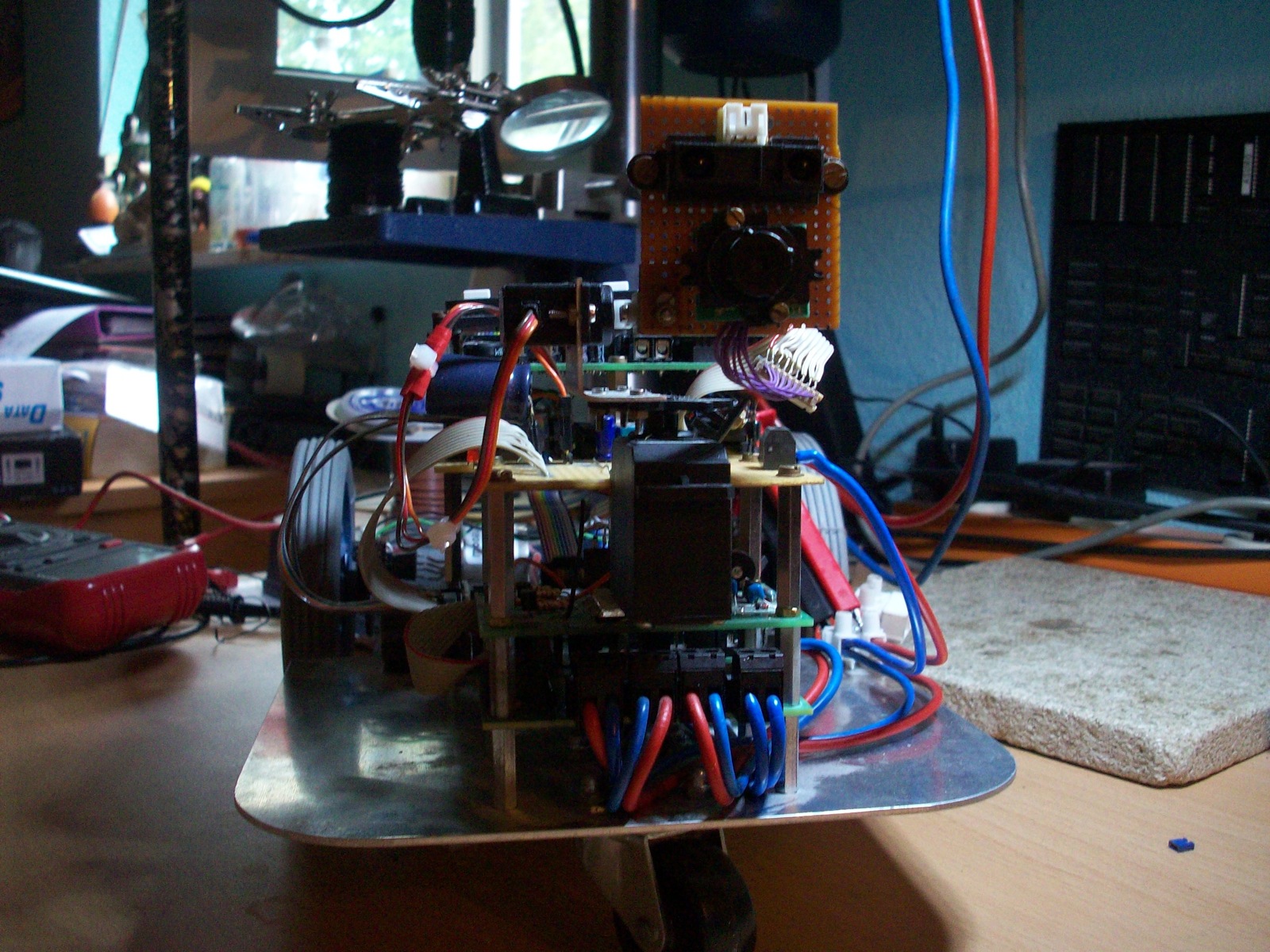

Now some pictures:
